Atlas of MSK Measurements

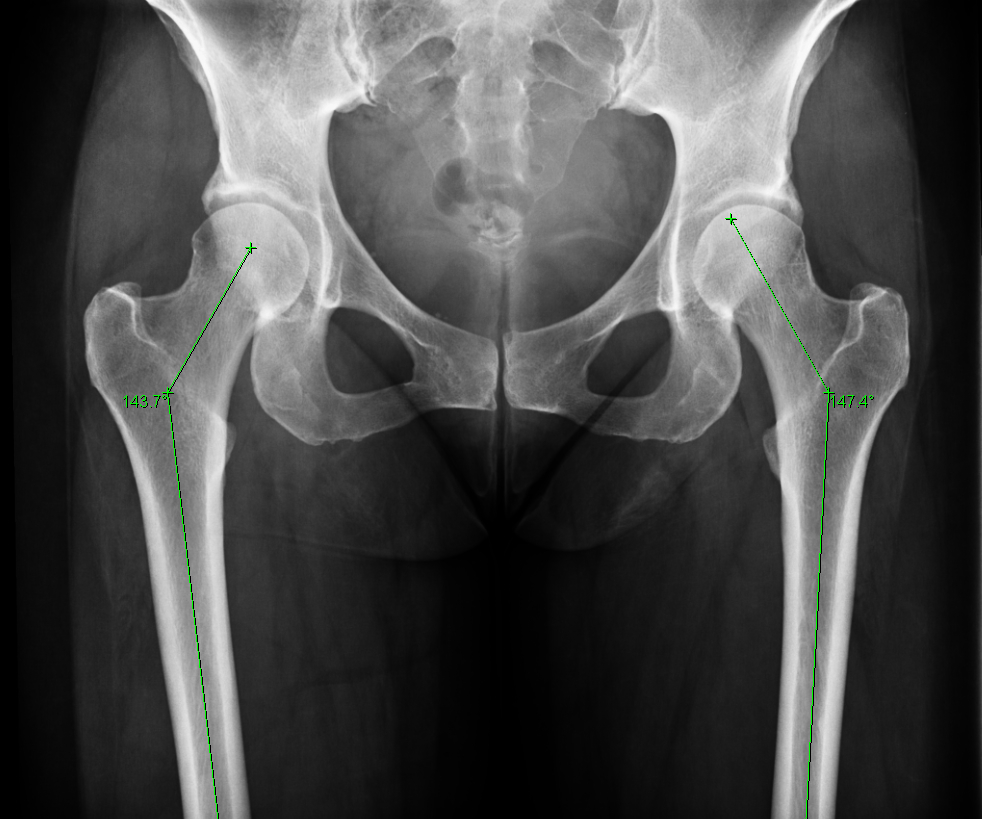

using the AP view of the hip, angle formed by axis of femoral shaft and line drawn along axis of femoral neck passing through center of head of femur ( RID2664 ) (figure 2). An example of coxa valgus is provided in the top image.
if < 125 degrees then coxa varus deformity ( RID4769 )
if > 135 degrees then coxa valgus deformity ( RID4768 )
hip ( RID2639 ), hip joint ( RID2640 ), femur ( RID2662 )
how to draw the femoral neck - shaft angle
